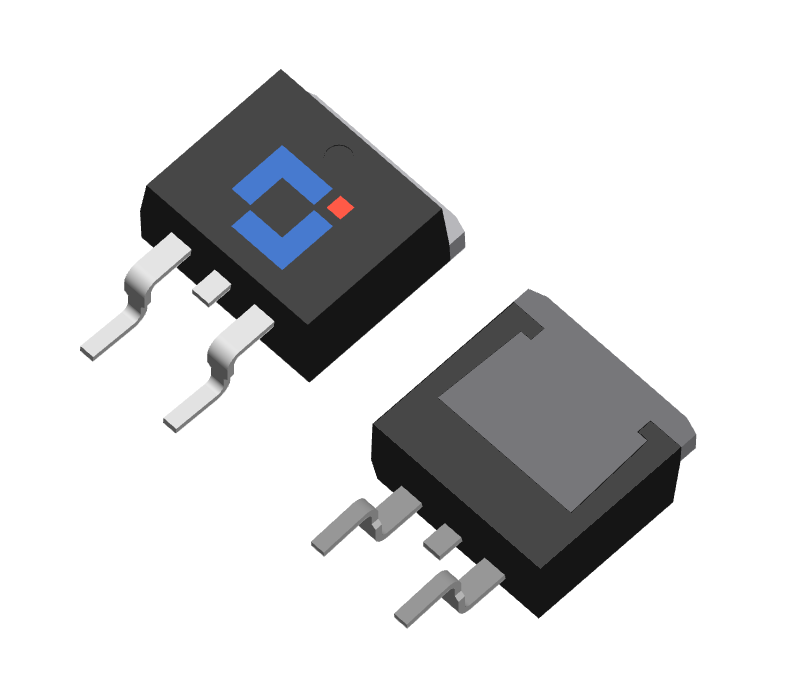

Nch 100V 110A, TO-263-2L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJB110SN10 | Active | No | 100 | ±20 | 110 | 1~2.5 | 8.5 | 10 | 9.5 | 14 | TO-263-2L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJB110SN10 | TO-263-2L | - | B110SN10 | Tape&Reel:800pcs/Reel | MSL3 |
